Lightweight materials---Carbon fiber

As heavy as the physical door.Jointly developed with SAIC VW.Technology Prize in 2018 from SAIC VW Group.Volkswagen Asia Pacific 2018 Technical Achievements Exhibition (Beijing).SAIC  2019 “Tech Show.

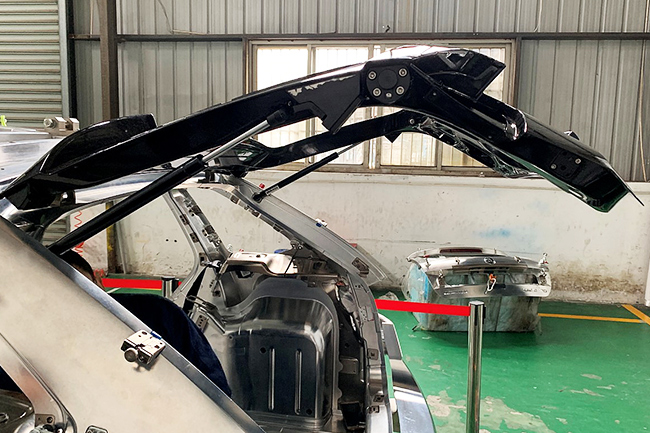

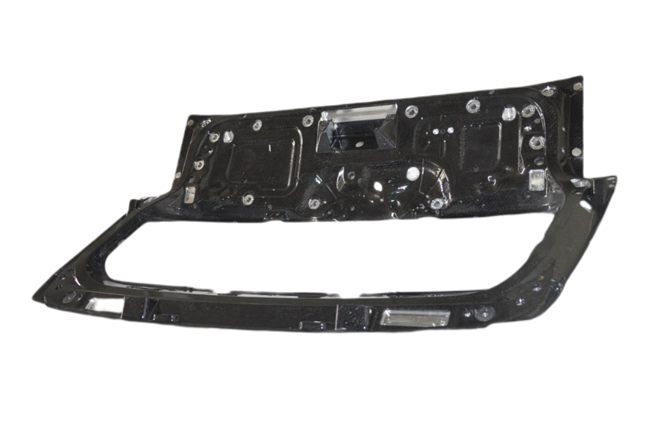

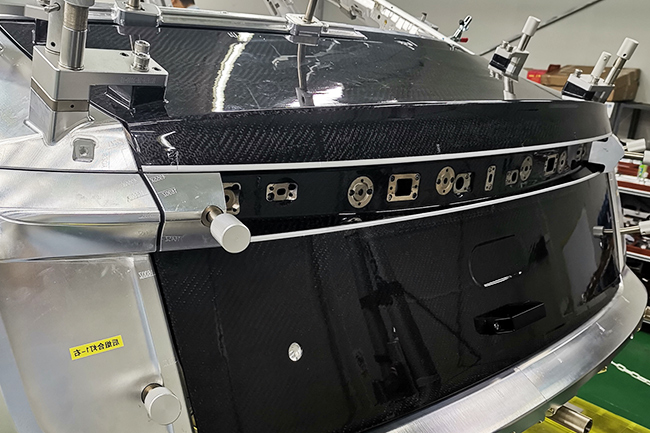

• TailgateCarbon Fiber
• TailgateCarbon Fiber

As heavy as the physical part.Focus on ergonomic & safety.Can fit on cubing & BIW. Optimal Replacing for OCF.With high strength & high hardness, protecting for crash damage.

• TailgateCarbon Fiber

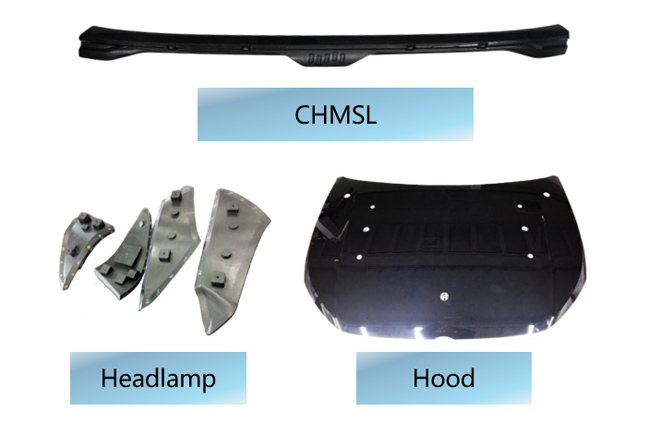

• Lamps& HoodCarbon Fiber

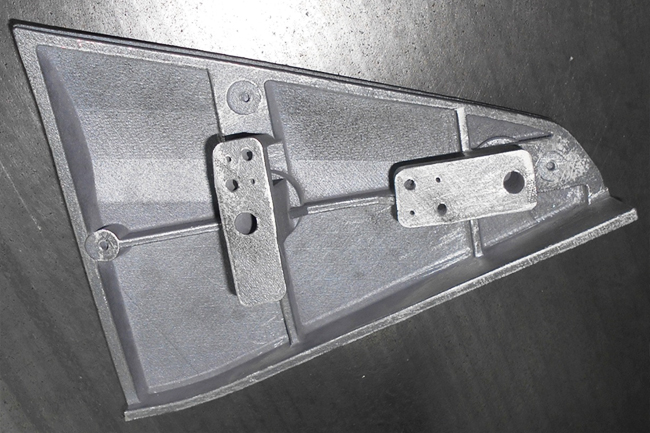

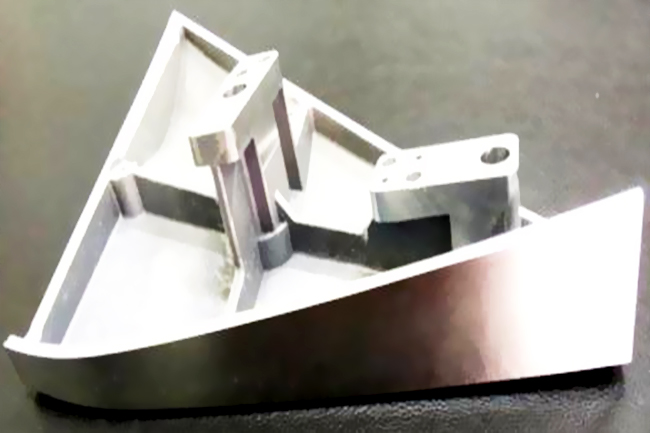

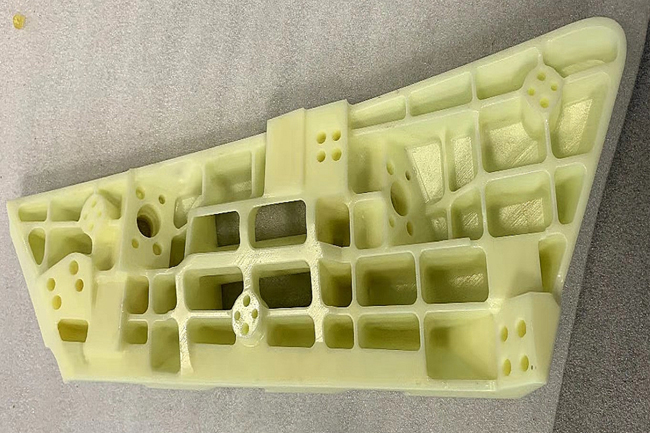

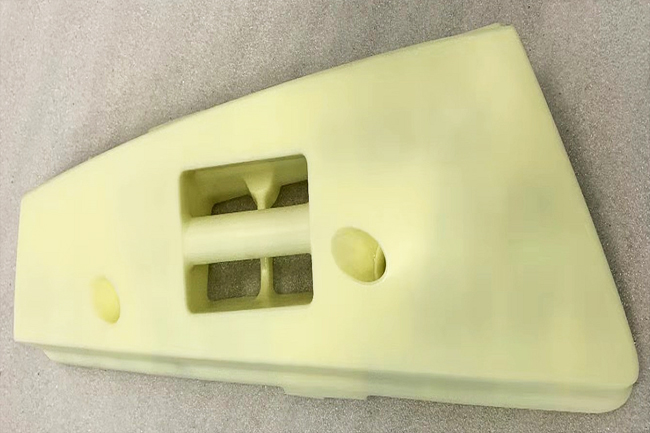

Lightweight marials---3D Printing

As heavy as the physical lamp.Focus on ergonomic.Can fit on cubing & BIW. Optimal Replacing for OCF.The short manufacturing period and suitable for engineering changes.Jointly Developed with SAIC VW. Patent have been granted by CNIPA.

• Headlights3D Printing
• Headlights3D Printing
• Headlights3D Printing
• Headlights3D Printing
• Headlights3D Printing
• Headlights3D Printing

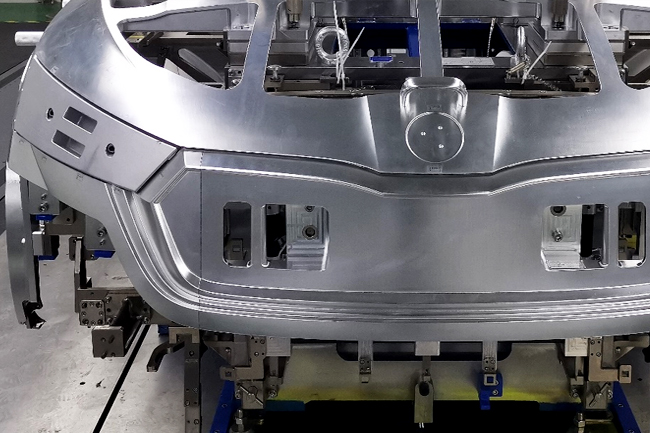

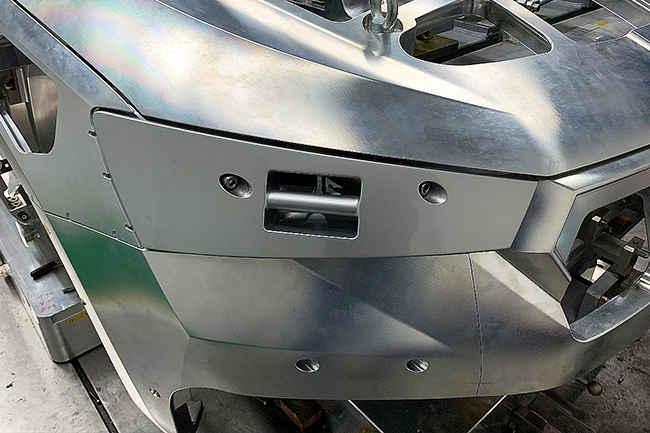

Shared use

Multi-model shared structure of cubing.

Front End and Rear End can be replaced.

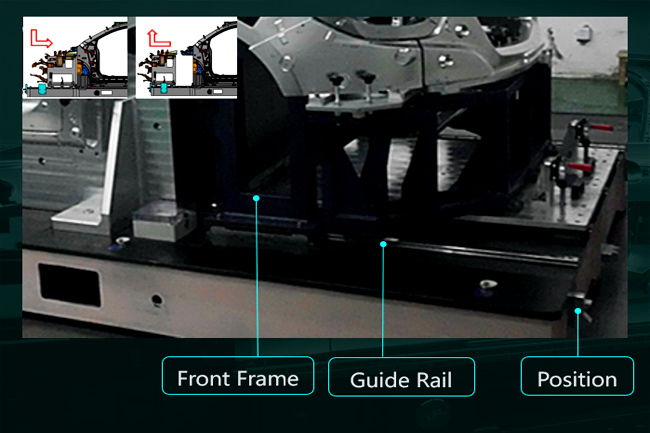

Removable Front END by guide rail.

Suitable for two models produced at the same time, with a shared front end.

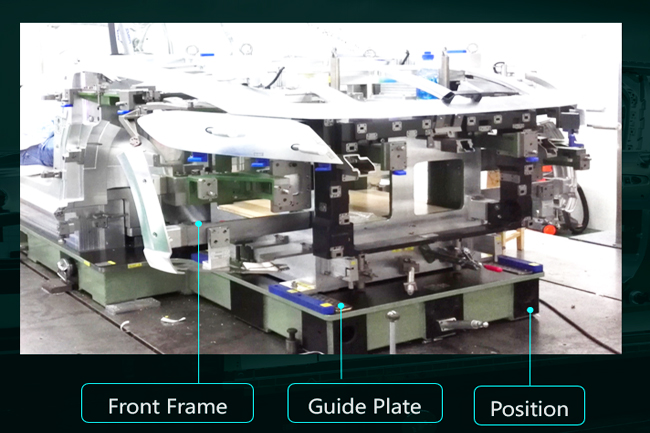

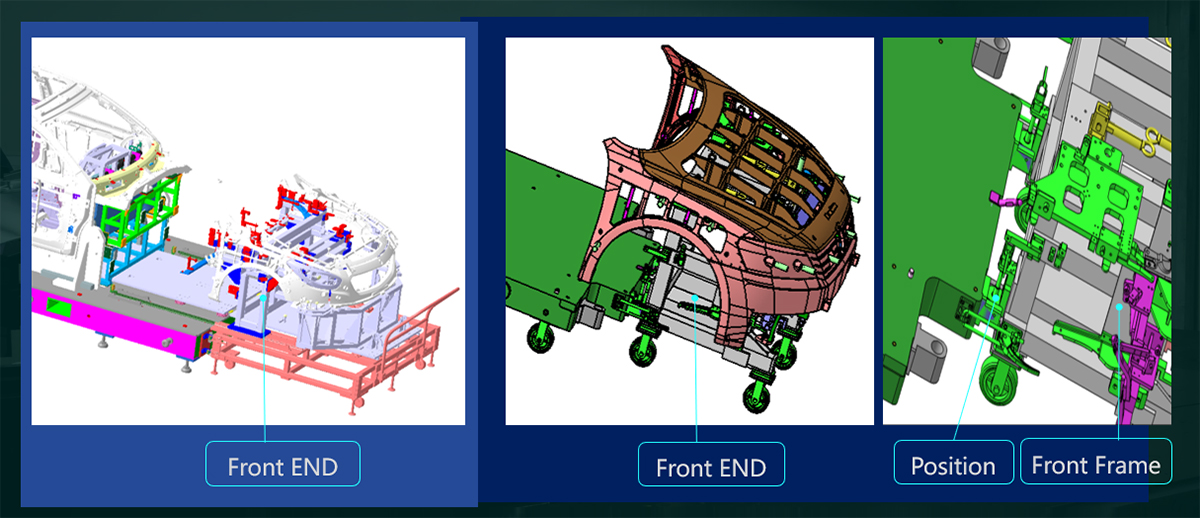

Removable Front END by guide plate.be usable guide plate instead of rail. The front end only relies on the positioning pin lock on the baseplate. Easy to install and debuge. Several models even if made separately can use the guide plate structure.

Shared use

Multi-model shared structure of cubing.Front End and Rear End can be replaced

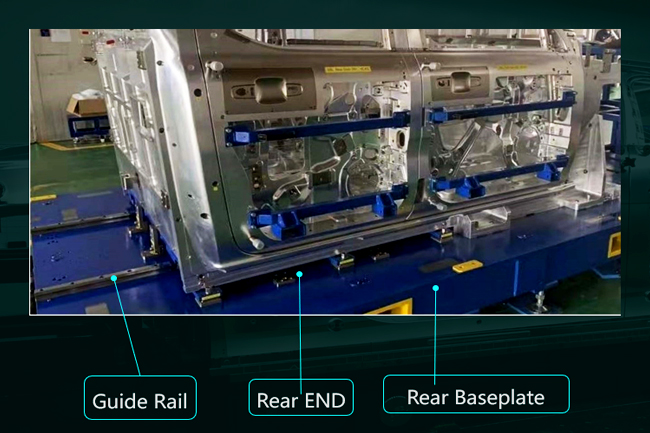

Removable Rear END by guide rail

Applicable scenarios

Suitable for two models produced at the same time, with a shared rear end.

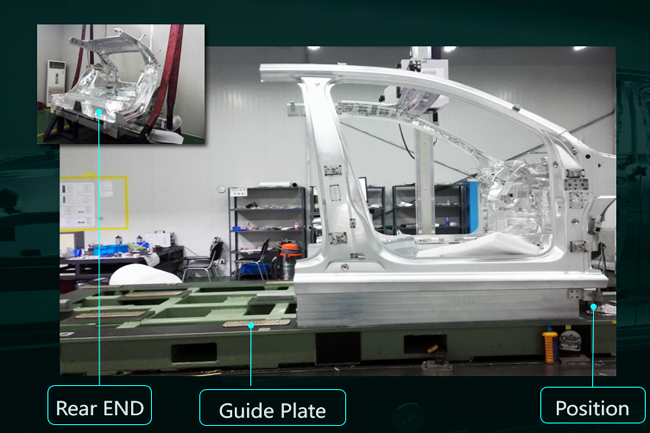

Removable Rear END by guide plate

Applicable scenario

Use guide plate instead of rail. The rear end only relies on the positioning pin lock on the baseplate. Easy to install and debug. Several models even if made separately can use the guide plate structure.

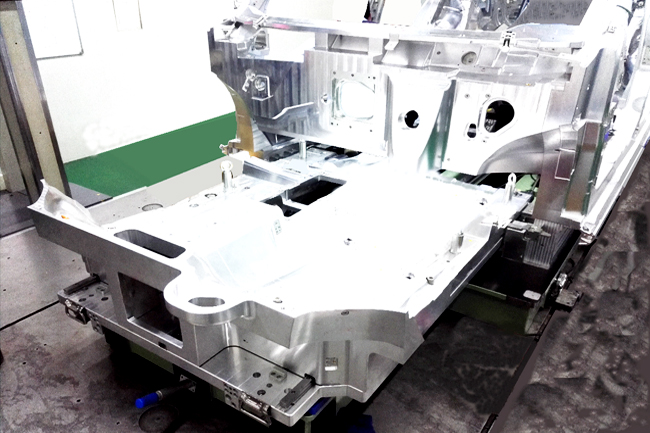

Shared use

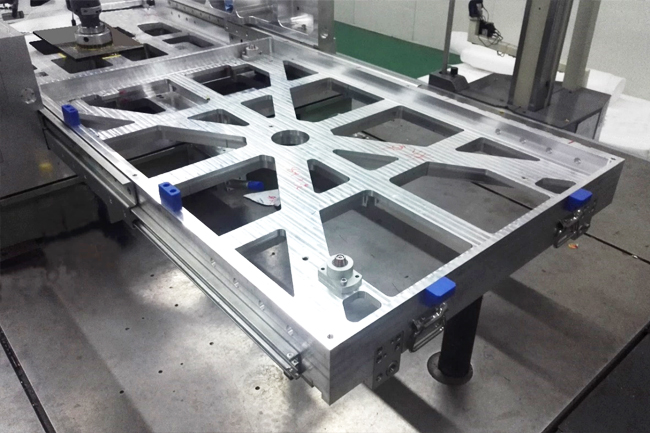

Multi-model shared structure of cubing.Front floor and Rear floor can be replaced.Replaceable structure with pulling type in the front and rear floor. Suitable both for new energy and traditional gasoline vehicle.

• Front floorReplaceable
• Rear floorReplaceable

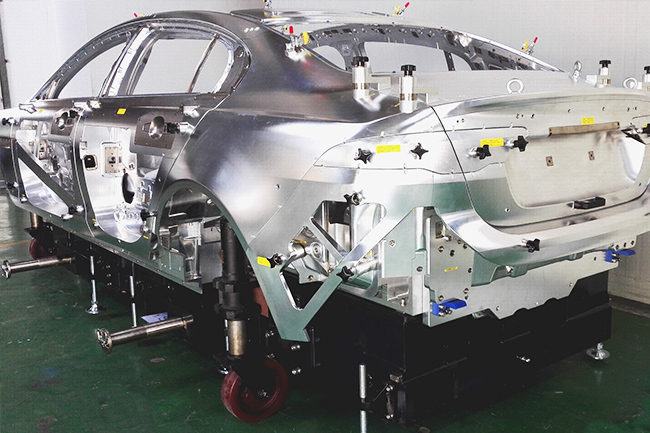

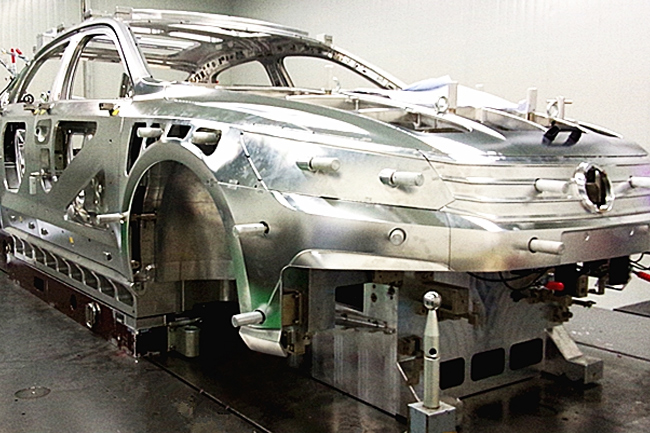

Body posture

Visual review.Smaller base plate and the same height as the real car. Complete feature lines and A surface.Wheels height adjustable.

• bottom platesmaller
• Four-wheel heightAdjustable
